Definitions and basics on sustainable infrastructure
The greatest risk to our civilisation lies in climate change and its associated environmental and socio-economic consequences. This process is driven by the release of greenhouse gases (GHGs), resulting from industrialisation and other human activities, spurred by consumer society. The following are some of the key GHGs:
- Carbon dioxide (CO2): Carbon dioxide is the most prominent greenhouse gas, primarily released through the combustion of fossil fuels (such as coal, oil, and natural gas), deforestation, and certain industrial processes.
- Methane (CH4): Methane is another significant greenhouse gas emitted during the production and transportation of coal, oil, and natural gas. It also arises from livestock and agricultural practices and the decay of organic waste in landfills.
- Nitrous oxide (N2O): Nitrous oxide is released through both agricultural and industrial activities, as well as from the combustion of fossil fuels and solid waste. It is also produced by natural processes, such as the nitrogen cycle in soil and oceans.
- Fluorinated gases: These encompass several synthetic compounds, including hydrofluorocarbons (HFCs), perfluorocarbons (PFCs), and sulphur hexafluoride (SF6). These gases are primarily used in various industrial applications, including refrigeration, air conditioning, and electronics manufacturing.
Although carbon dioxide is the most widespread greenhouse gas in terms of its overall contribution to climate change, methane and nitrous oxide are more potent in terms of their warming potential per unit of mass. Despite being present in smaller quantities, fluorinated gases have significantly higher warming potential than carbon dioxide.
Reducing emissions of these greenhouse gases is vital for mitigating climate change and achieving global climate targets. Reducing resource consumption encourages a transition towards sustainable production and consumption practices, involving the promotion of renewable resources, recycling, waste reduction, and the adoption of circular economy principles. Sustainable production and consumption help minimise the extraction of finite resources, reduce pollution, and lower emissions associated with resource extraction, manufacturing, and disposal.
Environmental footprints, such as carbon footprints or ecological footprints, consider various aspects of resource use and environmental impact. They evaluate not only greenhouse gas emissions but also factors like energy consumption, water use, land use, and waste generation. This comprehensive assessment provides a more thorough understanding of the environmental consequences of human activities, including their contributions to climate change.
Environmental footprints establish starting points by quantifying current levels of resource use and emissions. With these benchmarks, specific reduction goals can be established to guide and measure progress in mitigating climate change. Regularly measuring footprints and tracking improvements allows individuals, organisations, and governments to monitor their performance and adjust strategies accordingly.
Renewable energies are highly relevant in sustainable infrastructure due to their contributions to climate change mitigation, energy efficiency, resource conservation, reduced air pollution, increased resilience, job creation, economic opportunities, and technological advancements. Embracing renewable energies enables sustainable infrastructure to achieve long-term environmental, social, and economic benefits.
Smart technologies can play a significant role in sustainable infrastructure by enhancing efficiency, optimising resource utilisation, and improving overall sustainability. Here are some key areas where smart technologies are relevant in sustainable infrastructure:
- Energy management: This involves precise monitoring and control of energy consumption in buildings, transportation systems, and energy grids.
- Water management: Sensor networks and data analytics enable real-time monitoring of water usage, leak detection, and efficient irrigation systems.
- Waste management: Smart bins equipped with sensors can monitor waste levels and optimise waste collection routes.
- Transportation and mobility: Intelligent traffic management systems can optimise traffic flow, reduce congestion, and minimise travel times. Additionally, smart parking systems, electric vehicle charging infrastructure, and ride-sharing platforms contribute to sustainable mobility.
- Building automation: Automated systems control lighting, heating, ventilation, and air conditioning.
- Integration and interconnectivity: Connecting energy grids, buildings, transportation networks, and other infrastructure components using smart technologies enables comprehensive optimisation and coordination.
Life-cycle assessment and management are highly relevant in the sustainable use of infrastructure as they provide a systematic approach to consider and address the environmental, social, and economic impacts of infrastructure throughout its entire life cycle. Life-cycle management also considers the economic aspects of sustainable infrastructure. By evaluating the life-cycle costs and benefits, including construction, operation, maintenance, and decommissioning, decision-makers can identify cost-effective and sustainable solutions. Incorporating lifecycle thinking allows for long-term viability analysis, ensuring that infrastructure investments deliver value over their entire life cycle while considering environmental and social factors.
Biodiversity refers to the variety and variability of life on Earth, including the diversity of species, ecosystems, and genetic information. It encompasses all living organisms, from plants, animals, and microorganisms to the complex interactions between them and their natural habitats. From an infrastructural perspective, biodiversity is relevant because it supports essential ecosystem services, enhances resilience, mitigates environmental impacts, promotes sustainable land use, fosters stakeholder engagement, and ensures compliance with regulations. By integrating biodiversity considerations into infrastructure planning, design, and operation, infrastructure projects can contribute to the conservation of biodiversity, enhance sustainability, and create more resilient and socially acceptable developments.
Adaptation to climate change and the strengthening of resilience are highly dependent on the sustainable use of infrastructure, enabling the implementation of disaster risk strategies.
Activity 1: Estimate your carbon/ecological footprint, using an online tool, such as a carbon footprint calculator (https://www.footprintcalculator.org/home/en)
Instructions: Access the Online Tool: Begin by accessing the provided online tool, such as the carbon footprint calculator at https://www.footprintcalculator.org/home/en. You can open this link in a web browser on your computer or mobile device.
Start the Calculation: On the website, locate the "Start" or "Calculate Your Footprint" button. Click on it to begin the calculation process.
Answer Questions: The calculator will likely present a series of questions and prompts. Answer these questions honestly and to the best of your knowledge. The questions may cover topics such as your lifestyle, transportation habits, energy usage, diet, and consumption patterns.
Provide Data: Some questions may require specific data, such as your energy bills, transportation mileage, or diet preferences. Have this information ready to input when prompted.
Complete the Assessment: Once you've answered all the questions and provided the necessary data, the online tool will calculate your carbon/ecological footprint based on your inputs. This may take a few moments, depending on the complexity of the calculator.
Review Results: After the calculation is complete, you'll likely receive a detailed report or summary of your carbon/ecological footprint. This report may include information about your carbon emissions, your ecological impact, and how your lifestyle choices contribute to these figures.
Green Infrastructure
The European Union has provided a clear definition of green infrastructure (GI), describing it as a carefully planned network of natural and semi-natural areas and environmental features intended to offer a wide range of ecosystem services. It encompasses green spaces (or blue spaces in the case of aquatic ecosystems) and other physical elements in both terrestrial (including coastal) and marine environments. In both rural and urban settings, green infrastructure is present.
A sustainable green environment seeks to balance environmental, social, and economic concerns to establish a harmonious and thriving ecosystem. This effort underscores the interconnectedness between human activities and the natural world, with the goal of fostering a future where humans coexist with nature while meeting their needs and preserving the Earth's survival.
Ecosystems and their biodiversity provide several advantages to humans, making green spaces an essential part of infrastructure. These services are crucial for societal functioning, economic growth, and individual well-being.
In urban areas, access to green spaces is vital. Therefore, the incorporation of plants into urban environments is essential, including roadside vegetation, green walls, and roofs, courtyards, street vegetation forming green corridors, and urban parks serving as water absorbers, shade providers, and greenhouse gas absorbers. Particularly in urban environments, extensive heat zones pose health risks during summer. Elements of green infrastructure can mitigate these adverse effects.
Green infrastructure also plays a significant role in the balanced functioning of rural
and agricultural environments. In recent decades, industrialized agriculture has had detrimental effects on the
environment, including soil erosion, water pollution from excessive pesticide and fertilizer use, and food
contamination.

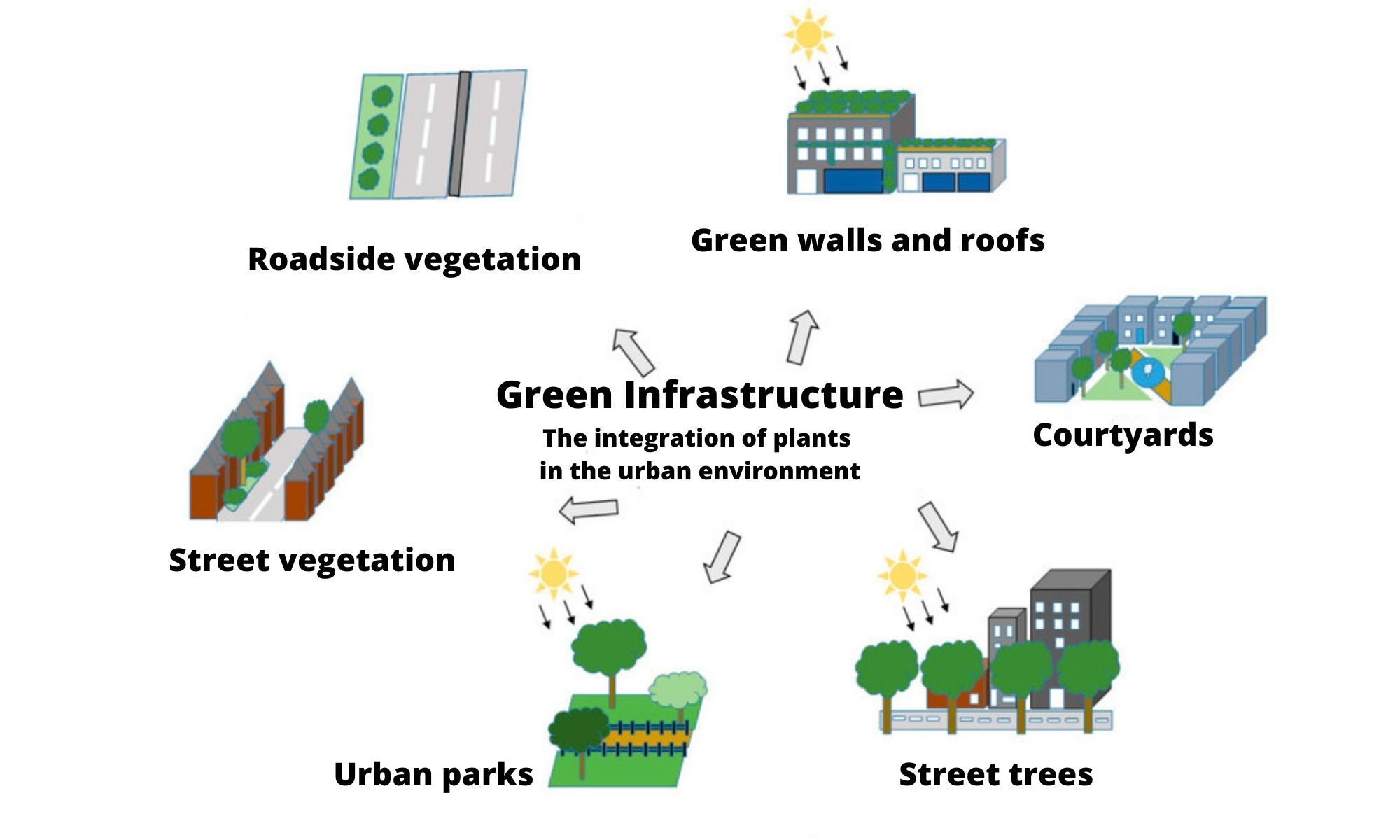

Figure 1 The relevance of green infrastructure in urban environment (Source: Wootton-Beard, P. et al 2019)
Green infrastructure allows for the integration of plants into urban environments. Roadside vegetation, such as bioswales, can reduce runoff from impermeable surfaces, with the degree of soil permeability enhanced through vegetation selection. Street vegetation offers shade, promotes well-being in urban areas, and can be used to create green corridors to enhance biodiversity. Urban parks are crucial for urban biodiversity and serve as recreational spaces. These parks can sequester more CO2 than previously believed and help manage stormwater.
Street trees contribute to carbon dioxide fixation and air pollution remediation when properly designed, providing shading and runoff reduction benefits. Different plant species are better suited for specific applications.
Courtyards have been a part of tropical architecture for centuries, providing cooler air when combined with passive ventilation systems.
The direct application of plants to building structures, such as green walls (vine coverage or specially designed modules) and green roofs, contributes to building thermoregulation.

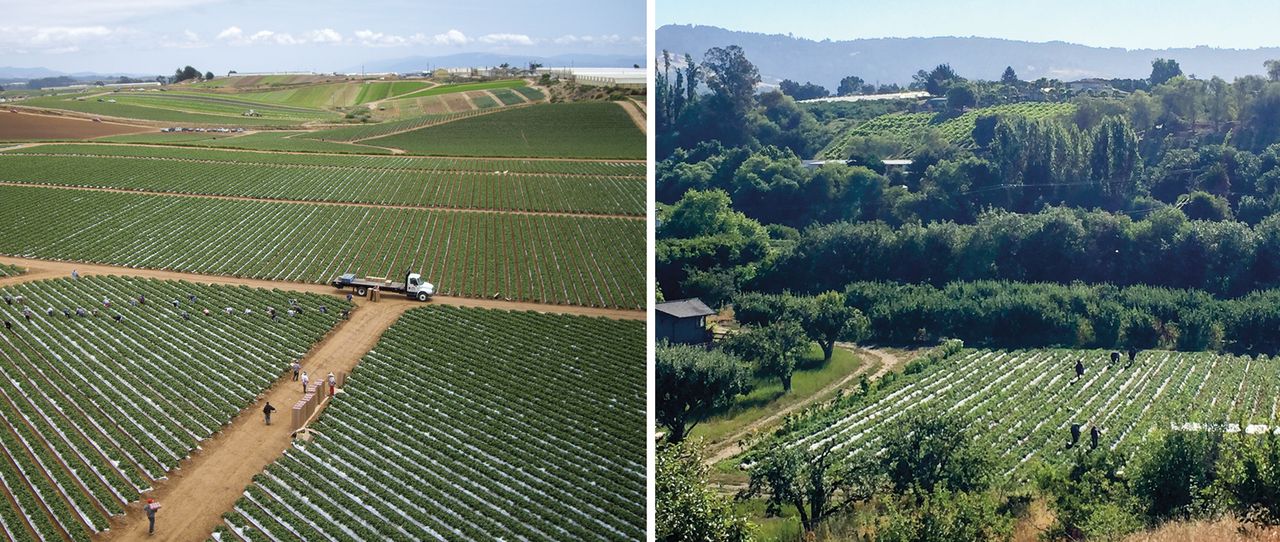

Figure 2 Homogenic and diverse landscapes (Source: https://www.science.org/doi/10.1126/science.aau6020)
Sustainable agricultural practices that integrate biodiversity conservation and land use are also imperative. Scientific research projects suggest that a more fragmented agricultural landscape with substantial grassy field boundaries is better equipped to resist pathogens, and higher natural pollination rates support increased yields.
Activity 2: Create a photo documentation on the green infrastructural elements of your environment! Think about where to deploy such additional facilities in your surrounding! Detect some of the heat zones of your settlement!
In this activity, you will be creating a photo documentation of the green infrastructural elements in your environment. You will also explore potential locations for additional green facilities and identify heat zones in your community. This activity will help you gain a better understanding of the role of green infrastructure in urban environments.
Materials Needed:
- A camera or smartphone with a camera
- Notebook and pen
- Comfortable walking shoes
- Sunscreen and water (if conducting the activity outdoors)
Instructions:
Research Green Infrastructure:
Before starting your photo documentation, take some time to learn about what green infrastructure is and its benefits. You can refer to the provided information or conduct additional research to understand its significance in urban settings.
Plan Your Route:
Decide on a route or area within your community that you would like to explore. Consider areas with existing green infrastructure elements such as parks, green spaces, street trees, or other environmentally friendly features.
Document Existing Green Infrastructure:
As you walk or explore your chosen route, use your camera or smartphone to capture photos of the green infrastructure elements you encounter. Be sure to photograph a variety of features, such as parks, trees, green walls, and any other examples you come across.
Take Notes:
While taking photos, jot down notes about each green infrastructure element. Include details like the location, type of feature, and any observations or thoughts you have about its benefits to the community.
Identify Heat Zones:
Pay attention to areas that feel significantly warmer than others during your walk. These are potential heat zones. Take photos of these areas and make note of their locations.
Explore Potential Green Infrastructure Locations:
Think about where additional green facilities could be deployed to mitigate heat zones or enhance the environment. As you continue your walk, look for suitable spots that could benefit from green infrastructure, such as empty lots, sidewalks, or areas lacking vegetation.
Reflect on Your Findings:
After completing your photo documentation and exploration, take some time to reflect on what you've observed. Think about the importance of green infrastructure in your community and its potential to improve the quality of life.
Sustainable buildings
Understanding key aspects of sustainable structures, including efficient HVAC (heating, ventilation, and air conditioning) systems, energy-efficient lighting, green roofs and walls, and the use of renewable energy sources like solar panels or geothermal systems, as well as gaining a fundamental grasp of passive design techniques and locally sourced, recyclable, or recycled materials with low embodied energy. Moreover, familiarizing oneself with various accreditations and requirements for green construction is crucial.
Since building operations contribute significantly to energy consumption, initiatives aimed at constructing sustainable structures and retrofitting existing ones play a pivotal role in enhancing energy efficiency and curbing greenhouse gas emissions. Official EU data reveals that buildings are responsible for 40% of EU energy consumption and 36% of energy-related greenhouse gas emissions. Nearly 75% of the EU's building stock lacks energy efficiency, with approximately 35% of buildings being over 50 years old. Furthermore, only 1% of the building stock undergoes renovation annually. As per EU standards, all new public buildings were mandated to be nearly zero-energy buildings (NZEB) starting in 2019, to be achieved by 2021.
According to literature, there are numerous strategies for boosting energy efficiency in buildings:
- Enhancing the building envelope is crucial to improve insulation and reduce heat transmission. This may involve replacing windows and doors with energy-efficient models, sealing air leaks, and installing insulation in walls, roofs, and floors.
- HVAC systems in buildings are significant energy consumers. Adopting more energy-efficient HVAC systems, like high-efficiency furnaces, heat pumps, and air conditioners, can considerably reduce energy consumption. The use of zoning systems and programmable thermostats also aids in better HVAC management and optimization.
- Substantial energy savings can be achieved by transitioning from conventional incandescent bulbs to energy-efficient lighting solutions such as light-emitting diodes (LEDs). LEDs are more energy-efficient, longer-lasting, and provide superior lighting. The installation of occupancy sensors, daylight harvesting systems, and smart lighting controls further optimizes building energy use.
- Replacing energy-hungry appliances and equipment, such as refrigerators, dishwashers, washing machines, and office furnishings, with energy-efficient alternatives can result in significant energy savings.
- Buildings equipped with renewable energy systems, such as solar or wind turbines, can reduce or eliminate their reliance on external energy sources. On-site clean energy production reduces grid dependency and can lead to long-term cost savings.
- The implementation of building automation systems and energy management controls enables more effective monitoring, management, and optimization of energy usage based on consumption patterns, schedules, and energy consumption.
- Encouraging energy-conscious behavior among building occupants through awareness campaigns, instructions, and incentives can lead to substantial energy savings. Promoting energy-saving habits, such as turning off lights when not in use or utilizing natural light, enhances overall energy efficiency.
- Regularly monitoring and benchmarking energy performance using energy management systems or software allows building owners and operators to identify areas of high energy consumption, track progress, and implement targeted energy-saving measures.
- Energy efficiency certifications and grading systems like LEED (Leadership in Energy and Environmental Design) or BREEAM (Building Research Establishment Environmental Assessment Method) offer frameworks for evaluating and measuring the sustainability and energy performance of buildings.
Various financial resources, grants, tax incentives, and rebate programs can support building energy efficiency
improvements, making energy-saving upgrades more economically viable. Additionally, the application of efficient
building certifications and standards enhances the market value of structures while promoting sustainability.

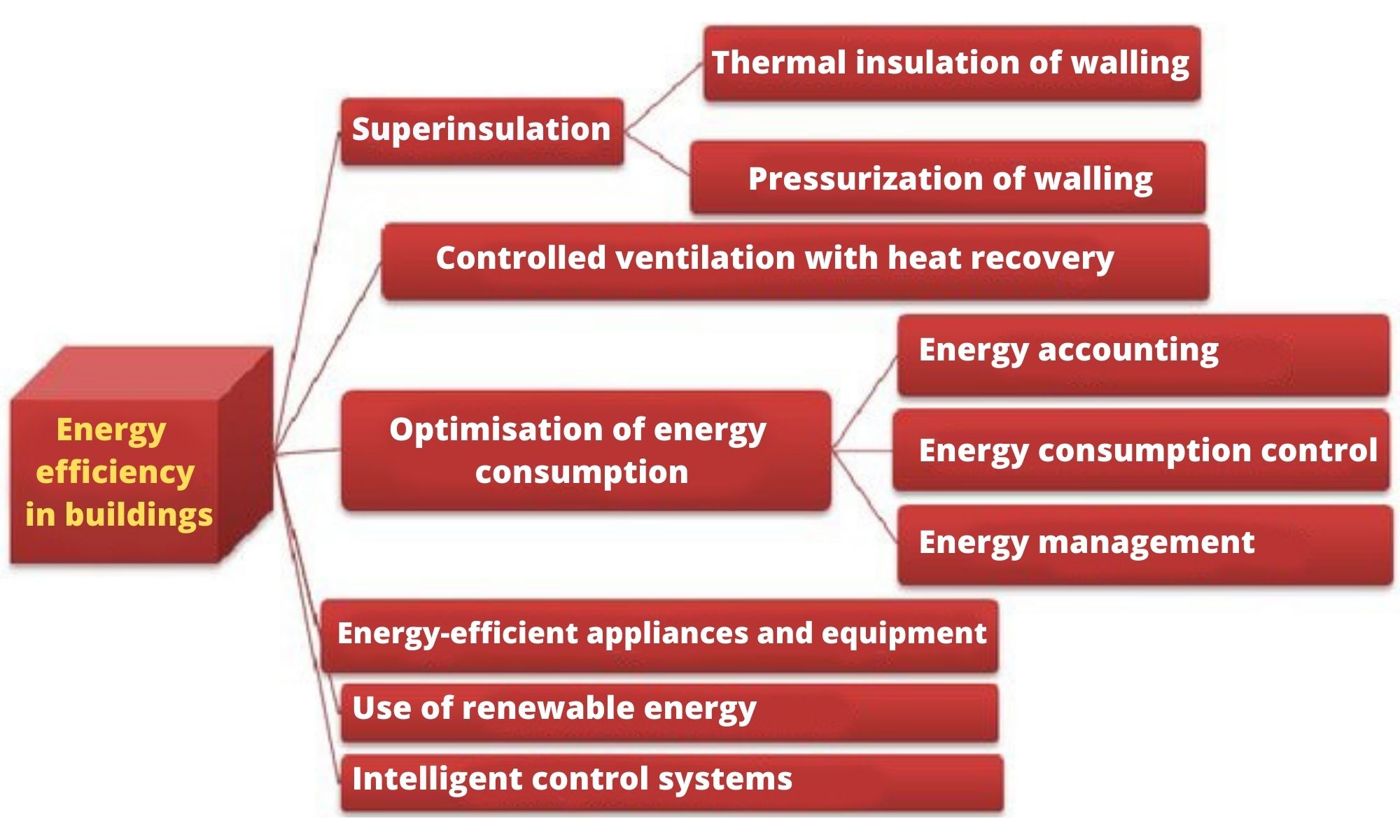

Figure 3: Possibilities of energy efficiency improvement on buildings (Source: Murgul et al, 2014)
Activity 3: Collect data on the energy consumption of your school building! From what resources has this covered by? List the projects of any energy-retrofitting of it! Are there any other needed measures to take to improvement it?
Objective: In this activity, you will collect data on the energy consumption of your school building, identify the energy resources used, list any energy retrofitting projects that have been undertaken, and suggest potential measures for improvement.
Materials Needed:
- Notebook or digital device for note-taking
- Access to your school's energy consumption records
- Pen or pencil
Instructions:
- Gather Information: Contact the school's administration or facilities management department to obtain access to the energy consumption data for your school building. This data may include electricity, natural gas, or any other energy sources used.
- Record Energy Consumption: Record the energy consumption data for your school building over a specific period, such as the past year or semester. Note the units of measurement (e.g., kilowatt-hours, cubic meters of gas) and the time frame covered.
- Identify Energy Resources: List the energy resources used by your school building, including electricity, natural gas, solar power, etc. Make a note of any renewable energy sources in use.
- List Retrofitting Projects: Inquire about any energy retrofitting or energy-saving projects that have been implemented in your school building. These may include insulation upgrades, HVAC system improvements, or the installation of energy-efficient lighting.
- Suggest Improvement Measures: Based on the data and information gathered, suggest potential measures for improving energy efficiency in your school building. This could involve reducing energy consumption, adopting renewable energy sources, or enhancing insulation.
- Document Your Findings: Write down your findings in your notebook or digital device. Include all the data, resource information, retrofitting projects, and your suggestions for improvement.
- Reflect and Discuss: Take some time to reflect on what you've learned from this activity and discuss it with your peers or instructor. Consider the environmental and economic impact of your school's energy consumption and the potential benefits of energy-saving measures.
Remember to respect any privacy and data protection regulations when accessing and using energy consumption data. This activity can provide valuable insights into your school's energy usage and contribute to making your school building more energy efficient.
Renewable energy facilities
To meet the urgent problems of climate change and environmental sustainability, renewable energy is becoming more important. A cleaner and more sustainable energy future has been made possible by the infrastructure development to support the usage of renewable energy sources.

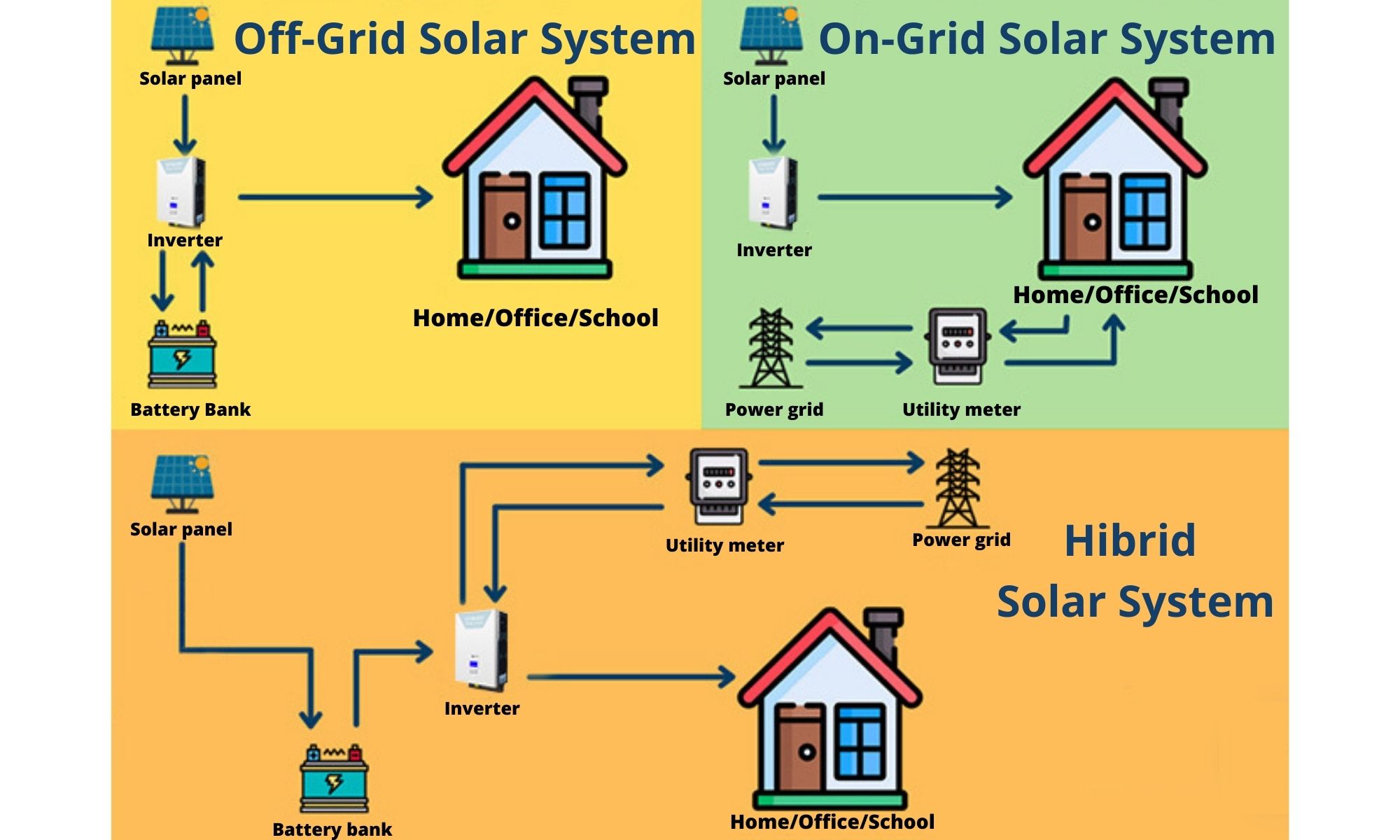

Figure 4: The comparison of the infrastructural background of off-grid/on-grid/hybrid solar systems (Source: www.xindun-power.com)
The generation facilities themselves are one of the core components of the infrastructure for renewable energy sources. Depending on the sort of renewable energy being used, these facilities differ. To turn sunlight into electricity for solar energy, photovoltaic (PV) panels or concentrated solar power (CSP) systems are employed. Wind turbines are necessary to produce wind energy because they convert the kinetic energy of the wind into electrical power. Depending on how connected to the larger grid they are, solar and wind energy systems can take one of three different forms. (Figure 4)
While geothermal power plants draw heat from deep within the Earth's surface to produce energy, hydroelectric power plants use the flow of water to do it. (Figure 5)

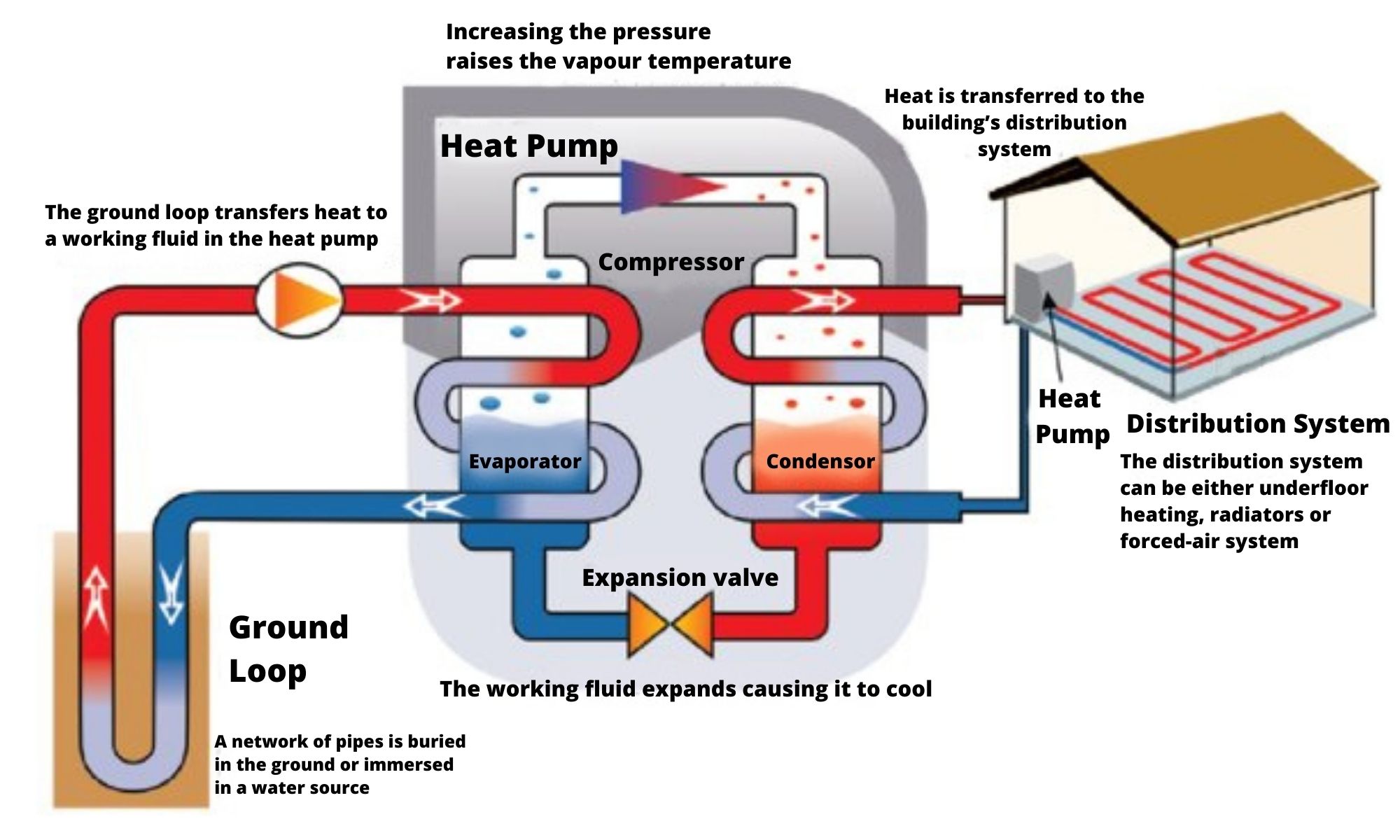

Figure 5: A schematic picture of a geothermal heat-pump (Source: Climo et al 2012)
A succinct explanation of how heat pumps work
A loop system buried underground is used by geothermal heat pumps to exchange heat with the Earth. Pipes that are filled with a heat-transfer fluid, like water or refrigerant, make up this loop.
Depending on the available space and the geological conditions, the loop is either put vertically in boreholes or horizontally in trenches. In both situations, the loop is buried beneath the frost line, where the temperature is largely consistent all year long.
The heat pump uses the loop system to circulate the heat transfer fluid as it draws heat from the earth during the heating mode. The ground's thermal energy is absorbed by the fluid as it moves through the loop.
Pumped into the heat pump unit within the building is the heat transfer fluid, which is now carrying the heat that has been absorbed. The fluid moves via an evaporator, a heat exchanger, inside the heat pump. Here, the heat is transmitted to a refrigerant, whose low boiling point causes it to vaporize into a gas state.
A compressor condenses the gaseous refrigerant, raising its temperature and pressure. The condenser is a further heat exchanger where the hot compressed gas passes through to transfer heat to the building's heating system or household hot water supply.
A distribution system, such as underfloor heating or radiators, is used to transmit the heat that is released in the condenser throughout the structure. The heat raises the temperature inside the building to the desired level.
By turning the process around, geothermal heat pumps can also provide cooling. When operating in cooling mode, the heat pump pulls heat from the air inside the building, releases it to the refrigerant in the condenser, and then transfers it to the ground loop's heat transfer fluid. The cooling cycle is subsequently completed by the cooler fluid absorbing heat from the earth.
Biomass power plants convert organic materials like agricultural residues, wood pellets, into usable energy. Here are key infrastructural basics:
- Reliable biomass feedstock supply is vital. It includes agricultural and forestry residues, energy crops, or organic waste. Coordination among producers, farmers, waste management, ensures steady feedstock.
- Efficient biomass gathering and storage is crucial. Techniques include harvesting, chipping, with storage in covered spaces or silos to prevent degradation.
- Pre-treatment and conversion are common. Drying, grinding, pelletizing, or torrefaction enhance energy density, stability. Conversion technologies span combustion, gasification, pyrolysis, anaerobic digestion.
- Appropriate power generation equipment matters. Biomass boilers, power plants, steam turbines depend on size, feedstock, and energy demand.
- Effective distribution and grid integration are key. Electricity transmission, district heating networks, coordination with utilities, adherence to grid rules ensure seamless integration.
- Emissions control and waste management are essential. Particulate filters, flue gas treatment, proper ash disposal mitigate environmental impacts.
- Continuous operation and maintenance are vital. Regular checks, upkeep, emissions monitoring, safety evaluations, skilled personnel ensure smooth, lasting operation.

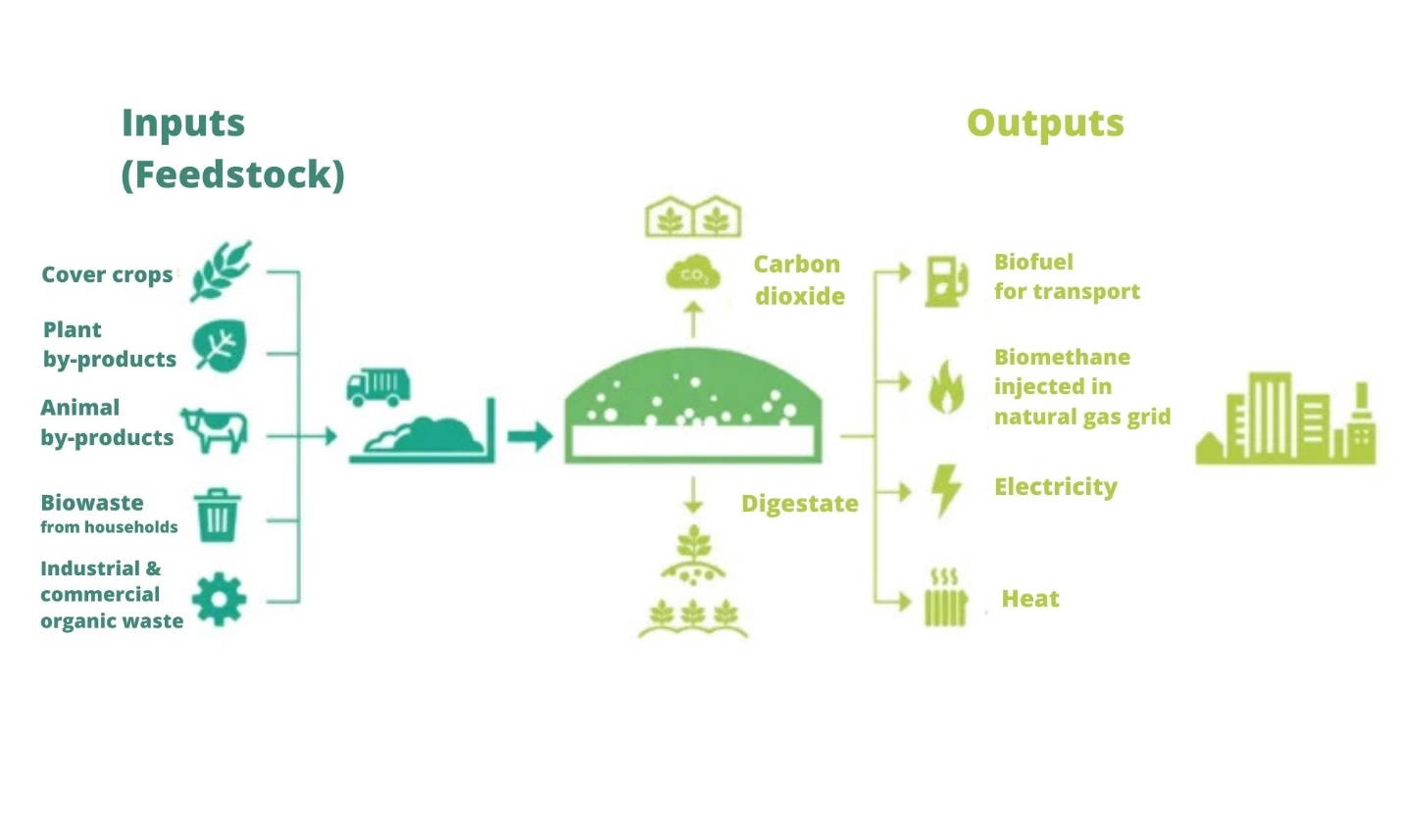

Figure 6: A schematic illustration of biogas/methane utilization (Source: www.europeanbiogas.eu)
Applications of biomass energy:
- Electricity: Biomass plants use wood chips, waste, energy crops for power.
- Heat & CHP: Biomass heats homes, powers industries, fuels CHP.
- Biofuels: Biomass becomes biofuels like ethanol, biodiesel.
- Biogas: Organic waste produces biogas for power, heating, fuel.
- Products: Biomass creates bioplastics, charcoal, fuel alternatives.
Another important factor is the location of the plants that produce renewable energy. In areas with abundant solar radiation and wind resources, respectively, solar and wind power plants are frequently situated. Access to sufficient water sources, such as rivers or reservoirs, is necessary for hydroelectric power facilities. Most geothermal power facilities are located close to geologically active regions with substantial geothermal heat sources. The best location for renewable energy infrastructure is influenced by several variables, including land availability, resource availability, environmental impact assessments, and accessibility to energy demand centres.
Infrastructure for transmission and distribution is essential for getting renewable energy from production plants to end customers. This comprises local distribution networks that link renewable energy sources to households, companies, and industries as well as high-voltage transmission lines that move electricity over short distances. Transmission and distribution grid upgrades and expansions are required to support the integration of renewable energy sources into current energy systems. In some instances, specialized transmission lines are constructed to link population centres to regions rich in renewable energy sources, such as offshore wind farms or distant solar power plants.
Another essential part of the infrastructure for renewable energy is energy storage systems. Energy storage devices aid in storing extra energy during periods of high generation and releasing it during periods of low output or high demand because the production of renewable energy is sporadic and reliant on weather conditions. Examples of energy storage technologies that make it possible for a more dependable and stable source of renewable energy include battery storage systems, pumped hydro storage, compressed air energy storage, and thermal energy storage.
The infrastructure supporting the use of renewable energy also includes crucial regulatory and policy frameworks. Incentives, subsidies, and other support mechanisms have been put in place by governments all over the world to encourage the construction of renewable energy infrastructure. Feed-in tariffs, tax credits, renewable portfolio standards, and net metering programs are a few examples of these policies. Such policies seek to entice capital, foster a favourable business climate, and encourage the development of innovative technologies in the renewable energy industry.
Activity 4.
Water efficiency
The goal of sustainable water management is to reduce water waste across a variety of sectors, including residential, commercial, industrial, and agricultural. The creation of suitable infrastructure is crucial for achieving water efficiency targets.
Starting with the planning and upkeep of water supply and distribution systems, a water infrastructure is efficient. These systems include reservoirs, pumping stations, water treatment facilities, and pipe networks that transport water to end customers. These systems' proper design, sizing, and upkeep assist reduced water losses due to leaks and guarantee a steady supply of water to satisfy needs.
It is possible to quantify water use accurately by installing water meters at various locations throughout the water supply and distribution systems. These give consumers the ability to keep an eye on their water usage, spot inefficiencies, and assess the success of their water saving efforts. Detecting leaks, controlling water demands, and optimizing water use may all be done with the help of real-time monitoring systems and data analytics.
Reducing the amount of water used by plumbing fixtures and appliances in buildings is essential. Water-saving toilets, showerheads, faucets, and washing machines reduce water waste without sacrificing performance. These fixtures frequently include water-saving innovations like aerators, flow restrictors, and dual-flush mechanisms without compromising user comfort.
- Showerheads with minimal water consumption are one option. They do so without sacrificing the showering experience. Compared to conventional showerheads, they utilize less water per minute.
- Water-saving faucets: These faucets have aerators or flow restrictors that lower the water flow rate while keeping the water pressure appropriate.
- Toilets with dual flushes: These toilets provide two flushing options: a low-volume flush for liquid waste and a higher-volume flush for solid waste. In comparison to conventional toilets, this enables users to select the right amount of water for each type of waste.
- High-efficiency toilets (HETs): These toilets are made to remove waste efficiently while using less water per flush.
- Waterless urinals: To avoid the need for water when flushing, waterless urinals use cutting-edge technologies such unique traps or cartridges. They assist in great water conservation and lower maintenance expenses incurred by conventional urinals.
- Water-saving washing machines: Compared to standard machines, high-efficiency washers consume less water per load. To reduce water usage, they frequently use advanced wash cycles and sensors that change water levels dependent on the size of the load.
Water efficiency can be greatly improved with the installation of infrastructure for collecting and using rainfall and greywater (wastewater from sources other than toilets). Greywater systems collect and treat wastewater from laundry, sinks, and showers so that it is fit for non-potable purposes like irrigation and toilet flushing. Systems for collecting rainwater from roofs and other surfaces then store it for use in landscaping or other non-potable purposes.
In industries where non-potable water can be used in place of freshwater for purposes, infrastructure for water recycling and reuse is essential. This comprises greywater and wastewater treatment systems that enable the reuse of treated water for irrigation, industrial processes, or toilet flushing. Reverse osmosis and UV disinfection are two cutting-edge treatment techniques that guarantee water quality fulfils the requirements needed for the intended reuse applications.
Programs for awareness-raising and behaviour change through education and outreach are a crucial part of the infrastructure for water efficiency. Campaigns for water conservation, workshops, and training sessions that include effective water use techniques are examples of educational initiatives. People and communities may make educated decisions and adopt water-efficient behaviours by increasing user awareness and understanding.
Activity 5: Get data on the amount of water consumption of your institution! Make a list of each consumption places (taps, toilets etc.)! Suggest the improvement/decrease of recent consumption trends!
Objective: To gather data on water consumption within your institution, identify consumption places (e.g., taps, toilets), and suggest improvements or decreases in recent consumption trends.
Materials Needed:
- Notebook or digital device for note-taking.
- A pen or pencil.
- A measuring container (if available).
- Access to water bills or consumption records (if applicable).
Instructions:
Step 1: Gather Necessary Information
- Start by identifying the sources of water consumption in your institution. Common sources include taps, toilets, showers, water fountains, kitchen appliances, and irrigation systems.
- Create a list of these consumption places.
Step 2: Collect Data
- Measure or estimate the water consumption for each consumption place over a specific time period. This could be daily, weekly, or monthly, depending on your preference and available data.
- For taps: Note down the number of taps and their average usage (e.g., liters per minute) and the frequency of use.
- For toilets: Count the number of toilets and estimate the water usage per flush, and the average number of flushes per day.
- For showers, appliances, and irrigation: Record relevant data as appropriate.
- If available, gather water bills or consumption records from your institution. Note the historical water consumption for each month or year. This information can provide insights into consumption trends.
Step 3: Analyse Consumption Trends
- Calculate the total water consumption for your institution based on your data. Sum up the consumption from all sources.
- Compare the current data with historical records, if available. Are there any noticeable trends or changes in water consumption? Are consumption levels increasing or decreasing?
- Identify areas where water consumption is particularly high or inefficient. This could be due to leaks, outdated equipment, or wasteful practices.
Step 4: Suggest Improvements
- Based on your analysis, suggest improvements or ways to decrease water consumption in your institution. For each consumption place, consider the following:
- Repair leaks or replace faulty equipment.
- Encourage water-saving habits, such as turning off taps when not in use.
- Install water-saving devices like low-flow faucets or toilets.
- Implement irrigation practices that conserve water, such as using rain sensors.
- Create a detailed plan for implementing the suggested improvements. Include estimated costs, potential savings, and a timeline for implementation.
Waste management
To solve the issues of garbage generation, disposal, and environmental effect, waste management infrastructure is crucial. It includes a variety of structures, programs, and procedures intended to efficiently gather, process, and get rid of trash while limiting its detrimental impacts on the environment and human health.
Well-designed garbage collecting systems are the foundation of effective waste management. For different waste streams like recyclables, organic trash, and hazardous items, these systems include curb side collection, drop-off locations, and specialized collection services. To enable convenient and regular garbage collection from homes, businesses, and public spaces, waste collection infrastructure incorporates strategically positioned bins, containers, and vehicles.
Rubbish transfer stations act as hubs in the middle, consolidating rubbish from collecting vehicles and transferring it to more substantial transport vehicles for additional processing or disposal. To segregating various waste streams and routing them to the proper treatment or recycling facilities, sorting facilities are crucial.
Recycling facilities accept recyclables and transform them into reusable resources that may be utilized in the production of new goods. To recover valuable materials from mixed waste streams, material recovery facilities use a variety of technologies, including sorting tools, shredders, and magnetic separators.
Facilities for anaerobic digestion and composting are part of the infrastructure for managing organic waste. Composting facilities transform organic waste, such as leftover food, grass clippings, and agricultural waste, into nutrient-rich compost that may be added to soil. By using bacteria to break down organic waste in the absence of oxygen, anaerobic digestion facilities provide digestate, a nutrient-rich by-product, and biogas that can be utilized to generate energy.
Waste-to-energy facilities, such as waste incineration or gasification plants, turn non-recyclable garbage into energy using thermal or biochemical processes. They reduce the amount of waste going to the landfill while recovering energy value by turning waste into power, heat, or fuel.
Despite efforts in waste management to lessen dependency on landfills, they continue to be a crucial component of the waste management infrastructure. Leachate control systems, gas collecting systems, and liners to prevent groundwater contamination are only a few of the engineering safeguards used in modern landfills to reduce their negative environmental effects.
To ensure adherence to waste management standards, infrastructure for waste management also includes monitoring systems and enforcement measures.
The waste hierarchy is a guiding principle that ranks waste management tactics according to how they will affect the environment. It offers a framework for resource- and sustainably wise waste management. The following guidelines make up the hierarchy, given in ascending order of importance:
- Waste prevention: The most desired strategy, which is often referred to as source reduction. It concentrates on lessening the initial waste production.
- Reuse: After waste prevention, reuse is the preferable strategy. It entails extending the lifespan of goods by putting them to use once again for their original function.
- Recycling: It’s the process of gathering, classifying, processing, and converting waste items into fresh goods or raw resources. It is a crucial tactic for preventing trash from ending up in landfills and minimizing the extraction of virgin resources.
- Energy recovery: It is commonly referred to as waste-to-energy, is the process of transforming waste into sources of energy. This can be accomplished using a variety of techniques, including anaerobic digestion, gasification, or incineration.
- Proper disposal: The least desirable choice in the waste hierarchy is proper disposal, sometimes referred to as landfilling. It entails the environmentally responsible and secure disposal of garbage in specially designed landfills.
Different waste collection systems are implemented to efficiently collect and manage various types of waste. Here are some common waste collection systems:
- The system of household trash management that is most frequently employed is curb side collection. Under this system, households dispose of their trash and recyclables in special bins. Recycling materials, biological garbage, and general non-recyclable rubbish can all be separated using different bins or bags.
- Recycling programs are made to separate out certain recyclable materials and collect them to keep them out of the garbage stream. For the collecting of items like paper, cardboard, plastic, glass, and metal, residences, businesses, or public locations are given recycling bins or containers.
- To create nutrient-rich compost, composting programs concentrate on the collecting and processing of organic waste, such as food scraps and yard trimmings. After being collected, the organic waste is processed using composting techniques, such as aerobic or anaerobic decomposition, to create compost that may be added to soil.
- Because of the possible threats to the environment and human health, hazardous waste, such as paints, batteries, and electronic trash, requires specific processing and disposal. To collect hazardous garbage from homes and businesses, specialized collection events or drop-off locations are set up.
- Specialized collecting systems are needed for some waste kinds because of their distinct traits or potential for recycling. For instance, collecting systems could be set up for certain industrial waste streams, medical waste, electronic trash (e-waste), or building and demolition garbage.
- Pay-as-You-Throw (PAYT) systems bill residents in accordance with the amount of rubbish they produce. By tying the price of waste collection to the volume of waste produced, it encourages waste reduction and recycling.
Going green in an office
Offices are present in many parts of social and economic activities; consequently, green offices might integrate many sustainable practices. Additionally, school environments can learn from examples and practices set by offices.
Green offices may contain several sustainability objectives, mentioned earlier, such as:
- Energy efficiency: Implement energy-efficient practices and technologies to reduce energy consumption. This includes using energy-efficient lighting, such as LED bulbs, installing motion sensors or timers to control lighting and HVAC systems, and optimizing temperature settings for heating and cooling.
- Waste management: Promote recycling and waste reduction initiatives within the office. Set up recycling stations with clearly labelled bins for paper, plastic, glass, and metal. Encourage employees to reduce paper usage through digital documentation and double-sided printing. Implement composting programs for food waste in break rooms or cafeterias, if feasible.
- Water conservation: Implement water-saving measures in restrooms and break rooms. Install low-flow faucets and toilets to reduce water usage. Encourage employees to be mindful of water consumption, such as reporting leaks promptly and turning off taps when not in use.
- Transportation: Encourage sustainable commuting options among employees. Promote public transportation, carpooling, biking, or walking to work. Provide amenities like bike racks, showers, and changing facilities to support active commuting. Offer incentives or subsidies for using public transportation or alternative modes of transportation.
- Paperless practices: Embrace digital documentation and communication to reduce paper usage. Encourage electronic filing systems, email correspondence, and online collaboration tools instead of printed materials. Implement paperless billing and invoicing systems.
- Green spaces: Incorporate greenery and plants into the office environment. Plants not only enhance aesthetics but also improve air quality and contribute to a healthier and more pleasant workspace.
- Employee engagement: Raise awareness and engage employees in sustainability initiatives. Organize educational programs, workshops, or lunch-and-learn sessions on environmental topics. Encourage employees to participate in sustainability challenges, such as energy-saving competitions or waste reduction campaigns.
- Telecommuting and flexible work arrangements: Encourage telecommuting or flexible work arrangements, which can reduce the need for commuting and office space. Remote work options can help lower carbon emissions, promote work-life balance, and reduce office energy consumption.
Activity 6: Fill out this checklist of green offices, based on information, related to your school! (Source: https://www.rochester.edu/sustainability/pdf/Green-Office-Checklist.pdf)
Materials Needed:
- Computer or mobile device with internet access.
- The Green Office Checklist form (Source: Green Office Checklist PDF).
Instructions:
- Access the Checklist Form:
- Open a web browser on your computer or mobile device.
- Go to the following link: Green Office Checklist PDF.
- Wait for the PDF document to load in your browser.
- Download the PDF (Optional):
- If you prefer to fill out the checklist offline, you can download the PDF by clicking on the download icon (usually a downward arrow) in your PDF viewer.
- Read the Introduction:
- Read the introductory information at the beginning of the checklist. This section provides an overview of the purpose and goals of the Green Office Checklist.
- Begin Filling Out the Checklist:
- Scroll through the checklist to review the different sections and questions.
- Provide Responses:
- For each question, carefully read the description and requirements.
- Fill in the response fields with your answers. You may need to check off boxes, provide numerical ratings, or offer written explanations.
- Review and Make Decisions:
- Some questions may require you to assess your school's office practices or policies. Discuss these questions with relevant individuals in your school if needed.
- Document Your Progress:
- Keep track of the answers you provide on the checklist.
- Submit the Checklist:
- If the checklist is being submitted electronically, follow the instructions for submission provided in the document. This might include sending it via email to a designated contact.
Green Office Checklist
Waste reduction and recycling
- [ ] Place recycling bins where trash bins are present
- [ ] Put recycling posters in common areas
- [ ] Reuse/Recycle packaging materials
- [ ] Recycle other office materials per university guidelines.
Purchasing
- [ ] Buy materials in bulk and consolidate smaller orders into one large order
- [ ] Purchase durable/reusable office supplies
- [ ] Use University preferred vendors for supply and delivery services
- [ ] Consider buying used office furniture and supplies from the University
Computing and printing
- [ ] Reduce paper use and print double sided
- [ ] Avoid colour printing whenever possible
- [ ] Turn on sleep settings for all office equipment
- [ ] Use postconsumer recycled paper of at least 30% for all office use
Energy
- [ ] Turn off lights when leaving a room
- [ ] Use smart power strips and/or unplug devices when not in use
- [ ] Use natural light whenever possible
- [ ] Keep windows closed when heating/cooling the building
Kitchen and catering
- [ ] Kitchen has a set of reusable mugs/cups and plates
- [ ] Kitchen has reusable utensils available
- [ ] Office space has easy access to clean and filtered tap water
Transportation
- [ ] Building has access to bike racks
- [ ] Department encourages the use of ride sharing and alternative transportation
- [ ] Teleconference, when possible, instead of commuting long distances
- [ ] Carpool/rideshare when traveling to off-site locations
Total: _ /23
